The Digital Text

In this post we will example the digital text and how and why it is encoded.

Denarius

Wars are often an unexpected event, and a lot of the major currency developments in the 19th and 20th centuries were due to wars. In the ancient world it was no different. The requirement to quickly gather resources required an efficient form of money.

During the Second Punic War, in 211 BC, Rome brought out the Denarius, which means ‘containing ten’ - because one silver Denarius was worth ten bronze (later copper) Asses.

During the Third Punic war, in 140 BC, Rome decided to go hexadecimal, where one silver-coloured Denarius became worth 16 copper Asses.

The silver-coloured Denarius was considered a day’s wages for a soldier. The gold-coloured Solidus varied in value but eventually stabilised by the 8th century as 12 denarii.

The Romans carried spread currency around and in Britain, the denarius became the penny but was still written as d until 1971 e.g. 5d for 5 pence.

12d made a shilling, which is the Anglo-Saxon term for the Solidus. The shilling was in the 16th century pegged to the value of a cow in Kent market.

Twenty shilling made a pound which was named after the unit of mass, a pound in cash was originally worth the value of a pound weight of silver (which is now about £300).

The pound of a unit of mass is itself Roman of course, from libra, which is why pound is shortened to lb. The pound £ sign was originally an L. 1 lb in mass is 16 ounces.

Part the deal when Britain applied to join the European Economic Community in the 1960s and 1970s, was that we got rid of all these crazy measurements and adopted metric, also known as scientific measurements, which we did eventually, to a certain extent. For example, milk, beer and cider are officially sold in units of 568 mL!

So until recently, the idea of non-base 10 measurements was completely normal.

Binary

George Boole was a theologian who was also one of the greatest mathematicians of the 19th Century.Boole understood mathematics and religion as intertwined. George Boole believed that studying mathematics would help reveal a new understanding of God.

../../../_images/george_boole.jpg

More on George Boole: http://zeth.net/archive/2007/07/19/what-is-truth-part-3-all-you-need-is-one-and-zero/

The core idea that all knowledge and thought could be reduced to two factors nothing (0) and God (1), had long been discussed, for example by the the Jesuit Gottfried Leibniz writing in the 17th Century. However, Boole had the mathematical knowledge to take the idea and build a complete system of logic around it.

../../../_images/yin_and_yang.png

Everything is either True (God - 1) or False (nothing - 0):

1 or  0 == 1
0 or  1 == 1
1 or  1 == 0
0 or  0 == 0
1 and 1 == 1
0 and 0 == 0
1 and 0 == 0
0 and 1 == 0
  not 0 == 1
  not 1 == 0

Everything that is not God is nothingness, everything that is something is God. God fills the nothingness but the nothingness cannot conquer God.

Any number can be represented by any sequence of bits. A bit is 0 or a 1.

Binary Decimal
0 0
1 1
10 2
11 3
100 4
101 5
110 6
111 7
1000 8
1001 9
1010 10
1011 11
1100 12
1101 13
1110 14
1111 15
10000 16

Traditionally, eight bits was called a byte (more correctly it is an octet). Four bits is a nibble.

A computer processor has lots of microscopic transistors. The CPU in my laptop (the Intel Ivy Bridge) has 1.4 billion of them. Each transistor is like a switch with an on and off state.

Hexadecimal

Binary is very low level. The first level of abstraction over binary is called hexadecimal.

In previous lecture, we looked at how and when and where computing was developed. These early computer developers choose the most efficient representation. As we mentioned earlier, until recently non-base 10 measurements were completely normal.

Hexadecimal (‘hex’ for short) is counting in base 16, here is the table from above with hex as well:

Binary Hex Decimal
0 0 0
1 1 1
10 2 2
11 3 3
100 4 4
101 5 5
110 6 6
111 7 7
1000 8 8
1001 9 9
1010 a 10
1011 b 11
1100 c 12
1101 d 13
1110 e 14
1111 f 15
10000 10 16

Now it is easy to convert any binary number to hex. You just split it up into nibbles from the right.

So this number:

11111011110

Split up is:

0111 1101 1110
  7    d    e

So in hex it is 7de.

What number is it in decimal? Well that is more complicated. Going from binary to decimal requires you to split the binary number up into parts:

10000000000 1024
1000000000   512
100000000    256
10000000     128
1000000       64
10000         16
1000           8
100            4
10             2

1024 + 512 + 256 + 128 + 64 + 16 + 8 + 4 + 2 = ?

So data is electrical impulses in a transistor, which represent 1 and 0, which are then hexadecimal numbers.

Now we have numbers, we can now encode characters. Each character is given a hex number.

So 41 in hex (which is 65 in decimal) is “latin capital letter A”.

There are different encodings (mapping between numbers and characters) but the only one that really matters in 2014 is called UTF-8 commonly called Unicode (although there are other forms of Unicode which did not win).

UTF-8 has room for 1,112,064 different characters and symbols which aim to represent all of the world’s languages.

The first 128 characters are carried over from an older standard called ASCII. The first 32 of these are historic control characters for controlling printers and teletype devices (remember those from a previous lecture?).

20 in hex (so 32 in decimal) is the empty space, then we get punctuation, then we get the numbers and so more punctuation etc then the letters in upper case then some more symbols then the letters in lower case etc.

This gets us to 7E (126) which is ~, and we have all of the English keyboard covered. The next 129 characters are Western European languages (German etc) and then it carries on after that through all the world’s letters and symbols.

Including some really fun stuff added to give compatibility with Japanese mobile phones:

http://www.fileformat.info/info/unicode/char/1f4a9/index.htm http://www.fileformat.info/info/unicode/char/1f302/index.htm http://www.fileformat.info/info/unicode/block/miscellaneous_symbols_and_pictographs/images.htm http://en.wikipedia.org/wiki/Emoji

So a digital text is a series of these hexadecimal numbers representing characters and symbols including spaces (20 in hex/32 in decimal) and control codes such as line breaks (0A in hex, 10 in decimal) and so on.

Here is a nice chart version of the first 127 (ASCII) characters: http://web.cs.mun.ca/~michael/c/ascii-table.html

So you can decode these characters (with some spaces added to make it simpler):

41 6e 64 20 74 68 65 72 65 66 6f 72 65 20 6e 65 76 65 72 20 73 65 6e 64 20 74 6f 20 6b 6e 6f 77 20 66 6f 72 20 77 68 6f 6d 20 74 68 65 20 62 65 6c 6c 20 74 6f 6c 6c 73 3b 20 49 74 20 74 6f 6c 6c 73 20 66 6f 72 20 74 68 65 65 2e

To make it clear that something is a hex value, it is often prefixed with 0x or x or U+.

This is as good as it far as it goes. But to make practical use of the data, just loads of text doesn’t help that much.

If we want to make a digital representation of a humanities artefact like a manuscript, we need to use a file format. Otherwise the digital text is of limited use for other scholars and software.

Why not use a word processor?

A word processor is an approximation of a late 19th century typewriter. A word processor will not help in transcribing this:

../../../_images/codex_sinaiticus.jpg

Let alone this:

../../../_images/P52_recto.jpg

What about this:

../../../_images/hamlet.png

How about this:

../../../_images/ylwenzipu.jpg

In the 1980s and onwards, a group of humanities scholars created the TEI, which is a set of guidelines for digitally representing humanities data:

These Guidelines apply to texts in any natural language, of any date, in any literary genre or text type, without restriction on form or content.

The guidelines can be found online here:

http://www.tei-c.org/release/doc/tei-p5-doc/en/html/

The TEI was initially SGML based then became XML based. What this means is that the text of the artefact is typed up, and meaning and extra information is inserted into the text using angle brackets.

An example of a text encoded using the TEI format: http://epapers.bham.ac.uk/718/1/47.xml

So in this simple line here:

<w n="6">testimonium</w>

The element <w> which means word, has an attribute n with value 6 which quite obviously tells us that it is word number 6. The text of the word then follows, and then the word ends with a closing tag: </w>

As explained in the preface to the TEI guidelines, part of the reason for them was to enable sharing of data and a new generation of shared TEI-supporting software to emerge.

Sadly that never really happened. The problem with the TEI is that it is a huge standard that doesn’t really simplify the problem space in any way. There are hundreds of available elements and every author of a TEI document uses their own subset it in his/her own way.

Churchill famously said that “Democracy is the worst form of government, except for all those other forms that have been tried from time to time.”

TEI is the worst form of encoding, except for all the other forms that have been tried from time to time.

Wizard of OZ

https://github.com/TEI-examples/tei-examples/blob/master/nypl.org/WizardOfOz.xml

JSON

Current interest is in storing text in JSON. Here is a really simple example:

http://zeth.net/examples/example.json

It shows a single verse.

Plain Text formats

Collating

Collating is comparing texts together. Show examples.

]]>
Mon, 10 Mar 2014 00:00:00 +0000
http://www.zeth.net/2014/02/09/the_politics_ethics_and_social_context_of_digital_culture.html http://www.zeth.net/2014/02/09/the_politics_ethics_and_social_context_of_digital_culture.html <![CDATA[The politics, ethics and social context of digital culture]]>

The politics, ethics and social context of digital culture

I thought it might be useful to give a non-digital example first. We will see whether it really helps or not!

Trams: a case study in technology

In 1700, what we now call South Birmingham was a patchwork of small subsistence tenant farms, but as people left the land to work in factories and other industrial jobs, these farms gradually became larger.

Here is a map of Birmingham in 1831, as you can see South Birmingham does not really exist yet. The built up areas are what is now known as the city centre:

Image of Birmingham in 1831

One of these larger farms was called the Grange Estate, in the following image, Isaac Bate and his family pose outside the farmhouse in 1876:

Image of a Grange Farmhouse

At the turn of the 20th Century, there was a massive housing boom and the Grange Estate was bought in 1895 and zoned for housing and roads.

../../../_images/grangeplan_small.png

It is like Sim-City, everything needed for the good life is provided, including shops and the important combination of a church and a brewery.

Victorian industrial workers would walk or cycle along quiet tree-lined avenues and then take the tram and train for longer distance travelling.

So far so good. You will notice there is no car parks, no off street parking, no garages. The total number of cars in the world was at this point was approximately 25, most of which were Benz hand made cars in Germany.

However, after the war, the brave new world required that the trees, train station and tramlines were all removed to make more space for the motorcar.

../../../_images/morrisminor_small.png

The Grange Estate is now overflowing with cars, and the Alcester Road is a traffic jam for much of the day. Traffic accidents are the leading cause of death for children and Birmingham is one of the most obese cities in Europe.

Car ownership in Birmingham peaked at 50% of households, one of the highest rates of car ownership for a large city. There is not, and never will be, enough space for everyone to own a car in dense urban areas like Birmingham.

Cars socially exclude people who do not own them, and are dangerous to people walking and cycling, and prevent community building as you cannot talk to other residents while stuck in a small metal box.

There are currently 380,000 cars in Birmingham (8000 are added every year). As the population of Birmingham is predicted to continue growing, the car is becoming increasingly unsustainable. The council have produced a plan:

../../../_images/birmingham_transport_plan_small.png

You guessed it, the plan is to reopen the train stations and put the trams back. Getting us precisely back to where we were in 1896.

The new Birmingham trams have a maximum capacity of 210. Cars in Birmingham have an average occupancy rate of 1.2.

A car driven for an hour every day, spends 4% of its time in use, 96% of its time rusting and getting in the way.

Cars are overproduced and inefficiency used. However, this overproduction has provided large numbers of good jobs - 145,000 in the UK alone currently work in the automotive industry.

If everyone moves to trains, trams and bikes, where do the jobs come from?

If Birmingham gets its comprehensive tram network, it needs just 120 tram sets to provide transport for the whole city (service every 6 minutes each way).

What does Birmingham’s 60 year love affair with the car tell us about technology?

  • Increased technological efficiency destroys jobs (while creating others).
  • Sometimes you have to go “back to the future”
  • Not all new technologies are necessarily a good idea
  • Technology is never un-invented, everything survives somewhere but the rate of growth or decline is the important thing to notice.

The history of the computer is much like the history of the tram.

The real history of computing (short version)

../../../_images/jacquard_loom_small.jpg

The first programmable object is the Jacquard Loom in 1801, it used punch cards which allowed different weaving patterns.

../../../_images/Ada_Lovelace_small.jpg

The digital age almost begins in 1843, when Lady Ada Lovelace (the daughter of poet Lord Byron) wrote the first computer programme, algorithm for Charles Babbage Analytical Engine to compute Bernoulli numbers.

../../../_images/adalovelaceplaque_small.jpg

The programme was written as part of a set of examples of what could be run on Charles Babbage’s computer the Analytical Engine. Sadly, the British government decided to cancel his research funding so this machine was never finished, but it would have been the first general purpose digital computer.

Here is his earlier machine called the difference engine:

../../../_images/Babbage_Difference_Engine_small.jpg

The digital age tries to begin again in 1936 when Alan Turing explains in a seminar paper that any real-world general-purpose computer or computer language can approximately simulate any other real-world general-purpose computer or computer language, i.e. it is “Turing complete”.

../../../_images/Alan_Turing_photo.jpg

Turing went on to create this, the Bombe, a machine designed to decipher encrypted German messages during World War II.

../../../_images/Bletchley_Park_Bombe_small.jpg

The successor was called Colossus, and is starting to be a recognisable computer.

../../../_images/colossus_small.jpg

Alan Turing was not appreciated during his lifetime, to put it lightly. However, now he is a man of many memorials, including these:

../../../_images/Alan_Turing_Olympic_Torch_small.jpg ../../../_images/Turing_Plaque_small.jpg ../../../_images/Sackville_Park_Turing_plaque_small.jpg

After that we have the first non-military computer, the Manchester Mark I in 1949, and pretty much from here the digital age has begun.

../../../_images/mark1_small.jpg

The next image shows the Atlas, also at the University of Manchester, the world’s most powerful computer in 1962. It had more computer capacity than the rest of the United Kingdom put together.

../../../_images/University_of_Manchester_Atlas,_January_1963_small.jpg

This is the 1970 PDP-11 operated here by Ken Thompson and Dennis Ritchie.

../../../_images/pdp11_small.png

Thompson is sitting at a teletype terminal. Where you code into the keyboard and the computer responds by printing out the result.

../../../_images/Teletype_with_papertape_punch_and_reader_small.jpg

Shortly afterwards, video terminals were invented. Such as this one:

../../../_images/DEC_VT100_terminal_small.jpg

It may look like a computer, but it is actually just a screen and a keyboard, all the processing happens in the mainframe computer elsewhere.

These type of computers can and normally did had multiple terminals, sometimes in other rooms or other buildings.

../../../_images/Digital.PDP-11.1970.102646128_small.png

In the 1970s, it was called time-sharing. Hundreds or thousands of terminals could share the same mainframe - which would be maintained and updated by specialists.

I love this next photo, the guy in the front looks like he has the universal programmer’s tense expression, i.e. ‘Why the heck is this not working now?’.

../../../_images/ctrlroom-1_small.png

These mainframes ran an operating system called Unix started by Thompson and Ritchie. The different terminal users could communicate with each other and collaborate.

The terminals got smarter over time, and even had graphical front ends that looked something like this:

../../../_images/cde_small.jpg

This was the start of the modern era of computing. Many programs that were written in the 1970s are maintained today. There is a continuous thread that runs from Lovelace and Babbage, through Turing to the real beginning of the digital age in the 1970s.

So far so good. This is our tram. Next, comes the car, or indeed two of them.

1. Personal computers

Here is an early attempt from 1969 to market a home computer.

../../../_images/cook.png

This particular model was a commercial failure.

When the PC came out, such this example from 1981, compared to the Unix systems of the 1970s and 1980s, they were giant step backwards.

../../../_images/IBM_PC_5150_small.jpg

No networking, a single process at once, focused on really dull office tasks like typing a letter. The biggest problem looking back was the software.

2. The rise of proprietary software

Until this point, the source code of all programs had been shared among the largely academic computing world. Everyone could study and improve computer programs and share those improvements back to the community.

With the new idea of proprietary software or closed source software, you don’t legally own the software anymore, you have merely licensed the right to use it under certain conditions.

../../../_images/Windows1.0_small.png

The source of the software is not shared, you just have compiled (unreadable) copy of it. There can now be a difference on what you think the software does (something useful) and what it actually does e.g. spy on you.

When you understand this point, you suddenly a realise it is a bad idea to licence or use any software that cannot be publicly peer reviewed and fixed.

Proprietary software comes with multiple pages of legalese and asks you to tick that you not only read it but also understand it. You have to lie in order to start it, and goes downhill from there.

The Snowden revelations printed in the Guardian have confirmed what we already knew, that Microsoft software has built-in backdoors for the NSA to spy on its users. Even scarier is that secret backdoors created for Microsoft and the NSA could also be exploited by criminals.

Proprietary software, especially in the form of Microsoft Windows, is a temporary aberration in the history of the digital. In 50 years time, Microsoft Windows will be considered as important as this device:

../../../_images/peppapig.jpg

So lets get back to the trams. There were two massive and related developments which happened almost in the background, but would come to dominate the digital world.

The rise of free/open source software

In 1983, a famous programmer in MIT called Richard Stallman began the ‘Free Software’ movement. As well as being a well known software developer (he invented the concept of a live real time text editor and started the most widely used compiler today - GCC), he best known as a digital philosopher.

../../../_images/rms.jpg

Stallman argued that software developers had a moral, ethical and political duty to enable co-operation and prevent restrictions on the ability of users to study, examine, peer review, modify and share software. He argued that proprietary software was anti-social, corrupt and ultimately self-defeating.

It is important to understand the difference between the terms ‘commercial’ and ‘proprietary’. Software can be ‘commercial’ - i.e. made by a company for profit, with or without being proprietary. Likewise a proprietary program may be made available at cost or at no cost.

He illustrates the concept by comparing ‘a free beer’ with ‘free speech’.

Eric Raymond and Bruce Perens created a later related concept called ‘open source’, which emphases the practical aspects rather than the political and ethical ones. For example, the vast majority of software is not created for sale in packaged boxes but is created use within companies and institutions where software is not their primary purpose. So if this software is shared and improved in a community, it gives added value to those who engage in it.

Almost every major software development of the 1990s and 21st century has happened within the Free Software/Open Source world including Linux and Android.

Most importantly, the most famous piece of free/open source software of them all, the World Wide Web.

The World Wide Web

In the early 1990s, the best designed and most powerful information protocol was called Gopher. However, despite its technical strengths, Gopher eventually lost out because the copyright owner, the University of Minnesota, wanted to sell it as proprietary software.

And finally a Brit again!

../../../_images/berners-lee_small.png

Tim Berners-Lee created World Wide Web, which while technically inferior to Gopher, was free software. Anyone could develop a server or a client without having to ask or pay anyone for permission. When WWW became widely shared in 1993, proprietary Gopher was toast. Gopher was eventually re-licensed as free software in 2000, but it was too late, WWW had taken over everything.

Finally, desktop computers had similar networking capabilities to 1970s mainframes. While they are a lot of people still using Windows, these are merely like the 1970s dumb terminals, 83% of web servers are running free software. Now with Apple OS X (based on FreeBSD Unix-like system), Linux desktops like Ubuntu and the rise of Android based phones and tablet (Android is based on the free software operating system Linux), almost everyone is running a system which is based on the 1970s Unix. The 20 years of the Windows aberration is coming to a close.

Go Linux, go WWW, go Trams, go bikes!

Academia and Open Source Software

Most UK and EU funding bodies now require that any software produced in a research project is released as open source software. Software developers within the academy, especially those in the humanities, are unlikely to be allowed to large pay licensing fees and are expected to use open source tools wherever possible.

Any project that uses the digital is likely to involve some open source software.

Beyond Open Source

The WWW has enabled collaboration in many areas, not just software. Principles and ideas from open source have been applied to other fields.

  • Freedom of Information - providing open access to government documents through the Web
  • Open Access - unrestricted access via the Web to peer-reviewed journal articles and primary data.
  • Crowd sourcing - creating content by soliciting contributions from online communities - Wikipedia being a prominent example
  • Crowd funding - funding projects through soliciting contributions from web users - e.g. Kickstarter

Digital Conduct

Collaborative and creative online communities are self-selecting. People form communities to create something, should they also be responsible for social justice?

Should these collaborative communities enabled by the web and by free/open principles have standards of behaviour, if so what should they be and who polices them?

Increasingly these creative communities have published codes of conduct, especially regarding communication and discrimination.

Developing-world criticisms: does attempting to regulate conduct in digital creative communities risk the danger of western (especially US west-coast) cultural imperialism? How do diversity and social policies relate to freedom of speech?

Does forcing participants to use real names instead of pseudonyms cause problems for those with fear of harassment?

How should gender be dealt with in largely male dominated online communities? Are those who run these communities responsible for addressing gender imbalances?

Communities that work primarily online but have conferences or social meetings pose particular issues in terms of harassment/unwanted attention. E.g. conferences with male to female ratios of 10 to 1 are not uncommon.

Some further reading

Karen Sandler, 2012 Keynote, (first 25 mins about hacking the software on her defibrillator), http://www.youtube.com/watch?v=5XDTQLa3NjE

Happy Hacking, The Keiser Report, Russia Today, 2012 (start at 12m) http://youtu.be/3o82P4V1vu0?t=12m9s

The Zen of Python, Tim Peters, 2004 http://www.python.org/dev/peps/pep-0020/

Free Software, Free Society: Selected Essays of Richard M. Stallman, 2002 http://www.gnu.org/philosophy/fsfs/rms-essays.pdf

The Cathedral and the Bazaar, Eric Raymond 2002 http://www.unterstein.net/su/docs/CathBaz.pdf

Revolution OS (2001), http://www.youtube.com/watch?v=CjaC8Pq9-V0

Biculturalism, Joel Spolsky, 2003 http://www.joelonsoftware.com/articles/Biculturalism.html

The Code Of Conduct, Jesse Noller, 2012 http://jessenoller.com/blog/2012/12/7/the-code-of-conduct

Geek Feminism: Timeline_of_incidents http://geekfeminism.wikia.com/wiki/Timeline_of_incidents

Donna Haraway, “A Cyborg Manifesto: Science, Technology, and Socialist-Feminism in the Late Twentieth Century,” in Simians, Cyborgs and Women: The Reinvention of Nature (New York; Routledge, 1991), pp.149-181. http://www.egs.edu/faculty/donna-haraway/articles/donna-haraway-a-cyborg-manifesto/

]]>
Sun, 09 Feb 2014 00:00:00 +0000
http://www.zeth.net/2014/01/13/crunchbang_linux_tips.html http://www.zeth.net/2014/01/13/crunchbang_linux_tips.html <![CDATA[Three Crunchbang Linux Tips]]>

Three Crunchbang Linux Tips

Image of Debian swirls in black and grey

As talked about previously, my main computers currently have the Crunchbang Linux distribution, which is a version of Debian GNU/Linux using the Openbox window manager.

These tips might also be useful for some other Debian or Ubuntu based systems.

Setting the keymap for an Apple keyboard

Image of Apple Keyboard with big keys

While laptops might need flat keys for portability (though I might argue the point), I hate typing on them. I like full-sized keys, not flaccid little flat ones.

I once bought an Apple Mac G4, I don’t use it anymore but I still use the keyboard I bought for it. Using Linux, it is not too much of a problem just to use the IBM layout without (i.e. remembering that the double quote mark is above the 2 key for example) but it is worth setting it properly in case someone else needs to use my computer.

I also have an Apple Macbook Pro laptop for work reasons which also has the same key layout.

Anyway, I edited the file called /etc/default/keyboard and set the following option:

XKBVARIANT="mac"

I am in Great Britain, so I also need to be sure that the following option is set:

XKBLAYOUT=”gb”

Maybe there was a way to change this using a graphical tool, but this way worked.

Creating screen layouts with ARandR

Image of ARandR Screen Layout Editor programme

ARandR Screen Layout Editor is a wonderful tool for setting up your monitors. You can drag them around, change the resolution and rotate them in order to create your perfect screen layout.

To save the configuration, click on ‘Layout’ then ‘Save As’ to save a particular configuration.

You can reload this configuration within the program, but the configuration file is itself a simple shell script (which calls xrandr with arguments representing what you have picked in the GUI).

So to automatically configure your screen layout when the graphical session first starts, you can append the script to the file:

~/.config/openbox/autostart

The fact that a configuration is just a shell script means you can easily have multiple layouts for different situations, and either call them yourself on the command line, assign desktop shortcuts or use other tools to call them, e.g. you can use cron to change the screen configuration at a certain time or write an upstart/systemd script to execute it based on some system event etc.

Dealing with not-found commands

Image of glass smashing with Linux penguin looking through

When using the command line in Ubuntu, if you try to call a command/program that has not been installed, it says something like:

The program 'tuxpaint' is currently not installed. You can install it by typing:
sudo apt-get install tuxpaint

Here is a more complicated example:

The program 'a2ensite' is currently not installed. You can install it by typing:
sudo apt-get install apache2.2-common

What actually happens here is a Python script appropriately named command-not-found is called which then looks up what package is needed to run the program.

If you want the same behaviour on Crunchbang, just do:

sudo apt-get install command-not-found

The problem with this utility on older hardware is when you accidentally make a typo that is actually a valid command somewhere, you get a second or so delay while it searches Apt’s cache, which could get annoying quite quickly.

If you want to search for a particular package, you can just use the pre-installed apt-cache command, e.g.:

sudo apt-cache search tuxpaint

All the packages to do with tuxpaint are listed in the terminal. However, this does not go down to the file level like command-not-found does. For example, the other example of a2ensite finds nothing:

sudo apt-cache search a2ensite

I don’t know a way of searching for a package by command using the stock Crunchbang install. However, you can install the apt-file package, which allows searches like:

apt-file search filename
]]>
Mon, 13 Jan 2014 00:00:00 +0000
http://www.zeth.net/2014/01/12/installing_multiple_versions_of_firefox.html http://www.zeth.net/2014/01/12/installing_multiple_versions_of_firefox.html <![CDATA[Installing Multiple Versions of Firefox]]>

Installing Multiple Versions of Firefox

Iceweasel logo

8Y3U5AJRHKZ2

So I want to test my web application using multiple versions of Firefox, especially the latest version, but I do not want to mess with my default system version (which is in fact Iceweasel :).

You can make this as over-complicated as you like. The simple way is to ignore apt and your system packaging system and run the test browser completely in user space.

The downside of this is that you will not get automatic security updates, so you have to keep an eye yourself for them and download new versions yourself. On the bright side, the browser is running as an unprivileged user and you are only testing your own site.

So you just download the archive from Mozilla. So I am using 64 bit Linux and I speak British English, so I used the following URL:

http://ftp.mozilla.org/pub/mozilla.org/firefox/releases/latest/linux-x86_64/en-GB/

You can edit the URL as appropriate and then unpack it e.g.:

tar jxf firefox*.tar.bz2

Inside the new firefox directory there is an executable named, somewhat unsurprisingly, firefox, call it in the following way:

./firefox -no-remote -P

This will pop up a little dialogue that allows you to choose the user profile, so create a new one:

Image of firefox user profile dialogue

You can see I have created a profile called Firefox26. In this way, the new Firefox version will not mess with the main system version. Click ‘Start Firefox’ to launch it. Having a new profile for each test version will keep things both sane and nicely decoupled.

]]>
Sun, 12 Jan 2014 00:00:00 +0000
http://www.zeth.net/2014/01/11/building_python_from_source_on_debian_or_ubuntu.html http://www.zeth.net/2014/01/11/building_python_from_source_on_debian_or_ubuntu.html <![CDATA[Building Python from source on Debian or Ubuntu]]>

Building Python from source on Debian or Ubuntu

Cruchbang Linux Logo

Python is available pre-built for more or less every platform and if you are using Linux or Mac then you have it already. If you don’t know why would you want to build Python from source, then this post is probably not for you.

I wanted to test things on a newer version of Python than is currently available in Debian stable. There are also things I want to improve in the standard library, but sadly I do not have time for that at the present moment - but a man is allowed to dream.

Building Python is explained in the Python Developer’s Guide. This post is a commentary on that, and I am assuming you are using a Debian or Ubuntu based operating system on your computer.

To start with you need the Mercurial source control management tool, commonly known as hg. If you don’t have it, you can get it with the following command:

sudo apt-get install mercurial

Now you need to get the source code of Python, as the developer guide says:

hg clone http://hg.python.org/cpython

You will get output like this:

destination directory: cpython
requesting all changes
adding changesets

Now you have to wait for a little bit; obviously there has been quite a lot of changes since Python began in 1989, so this may take ten minutes (depending on the speed of your computer). There is no progress bar or anything, so you have to just have faith that something is happening. Eventually, I ended up with 301 M in my new cpython directory.

While that is working, open a new terminal tab and start installing the dependencies. As the guide points out, the following gives the minimum required:

sudo apt-get build-dep python3

Several modules in the standard library depend on optional dependencies, to get them all you can do this:

sudo apt-get install libreadline6-dev libsqlite3-dev liblzma-dev libbz2-dev tk8.5-dev blt-dev libgdbm-dev libssl-dev libncurses5-dev

Feel free to leave out the ones you know you are not interested in e.g. a server will not need support for GUIs, so leave out tk8.5-dev and blt-dev in that case.

A slightly obvious point, but worth pointing out, is that some of these packages have version numbers in. If your distribution has newer packages than mine, especially if you are reading this post years after I wrote it, then this command might give errors. In that case, first try increasing the numbers.

Now we are ready to go back to the developer guide:

cd cpython
./configure --with-pydebug
make -s -j2

For completeness, I will just point out that -s is for silent and -j2 allows make to use two parallel ‘jobs’ which then invoke the compiler i.e. gcc (for portability reasons make does not use threads or processes but has its own internal jobserver), you can increase the number 2 but compiling Python is pretty quick (especially compared to the earlier steps), around half of cpython is actually written in Python anyway.

]]>
Sat, 11 Jan 2014 00:00:00 +0000
http://www.zeth.net/2014/01/10/crunchbang.html http://www.zeth.net/2014/01/10/crunchbang.html <![CDATA[Even more minimal with CrunchBang Linux]]>

Even more minimal with CrunchBang Linux

Cruchbang Linux Logo

I seem to have become the Littlest Hobo of Linux distributions. I still like Lubuntu, which is perhaps the best known of half a dozen configured distribution disk images based on the fast and efficient LXDE.

However, I accidentally selected an option in the login manager of Lubuntu that made my computer boot into plain Openbox, and I was hooked.

Then in May 2003, I noticed the release announcement of CrunchBang 11 “Waldorf” (which coincided with Debian 7 “Wheezy”) and installed it onto an old machine.

Image of a Crunchbang logo with the words decrustification services since 2008

CrunchBang Linux. is even more minimal than Lubuntu, using the Openbox window manager, like Lubuntu does, however Crunchbang does not put any desktop environment on top.

I initially just installed it for research purposes, I wanted to learn what an Openbox distribution looks like when properly configured. I thought I was just picking up ideas that I would be able to bring back to my Lubuntu computer. (It turns out that Crunchbang is pretty much the only Openbox distribution.)

The almost completely empty grey screen felt a bit depressing at first but it subconsciously grew on me; when you have all your applications open, the theme is a tasteful yet minimalist frame, the OS completely gets out of the way.

The key combination Super and Space (Super is also known as Command on the Apple Mac or the Windows key on Microsoft) brings up the main menu wherever the mouse cursor is (you can also use right click). This is especially beautiful on multiple monitors as you do not need to move your focus to the bottom corner of the left most monitor.

Image of a two monitor Cruchbang Linux desktop

The level of configuration and integration is really quite stunning for such a small team. However, once up and running, you are basically just running Debian. Apart from a few packages like the themes as so on, everything comes straight from the Debian stable repositories. Indeed Crunchbang might as well just be one of the default Debian disk images.

After using some form of Ubuntu or other for the last seven years or so, I was initially a bit hesitant to install a Debian based system on my desktop. However, I need not have worried, the difference between Debian and Ubuntu is rather marginal and certainly far less than my previous jumps from Slackware to Redhat to Gentoo to Ubuntu.

]]>
Fri, 10 Jan 2014 00:00:00 +0000
http://www.zeth.net/2013/03/09/why_lubuntu.html http://www.zeth.net/2013/03/09/why_lubuntu.html <![CDATA[Why Lubuntu?]]>

Why Lubuntu?

Lubuntu Logo

Lubuntu is a version of Ubuntu with the LXDE desktop instead of Unity. I am not a Unity hater, I actually like Unity a lot. I just like LXDE more.

LXDE is a desktop focused on performance and keeping out of your way. It is based on GTK+, so in practice it is similar to GNOME or Unity.

I have to admit it is not yet as polished as those other desktop environments, especially the preferences tools are not as consistent and simple as the ones in normal Unity. Since I am the kind of person who ignores the desktop tools anyway and installs my own choice of programs, it doesn’t really matter a great deal.

The LXDE and Lubuntu projects are relatively new and have quite small teams (after all, the more well known GNOME project started in 1997).

If you are interested in writing software for the open source desktop, there seems to be a lot of niches unfilled, a lot more opportunities to make an impact in this kind of project.

I often read articles on the web recommending LXDE for old computers, where is does work much better than more hungrier desktops. Indeed I started using Lubuntu because a computer was struggling with Unity, so I replaced it with Lubuntu and it became a lot more responsive.

However, the same theory applies to new computers too, why waste RAM and processor cycles on stuff you are not even using 99% of the time?

The RAM and processor are there to run the programs I want. The desktop environment, and the operating system in general, should use as little resources as possible.

Currently, Lubuntu has now become the main operating system I use on almost all my computers. I have not tried other LXDE desktops, such as those from Debian or Fedora, I would be very interested in how they compare to Lubuntu.

]]>
Sat, 09 Mar 2013 00:00:00 +0000
http://www.zeth.net/2013/03/08/lubuntu_on_macbook_pro_retina.html http://www.zeth.net/2013/03/08/lubuntu_on_macbook_pro_retina.html <![CDATA[Ubuntu on Macbook Pro Retina]]>

Ubuntu on Macbook Pro Retina

Yesterday I installed Lubuntu on the Macbook Pro Retina 13 inch. (MacBookPro10,2). I am going to talk about it here. It will be useful for installing normal Ubuntu, or other Linux based distribution on this model of laptop. At the level of hardware support, all flavours of Ubuntu are the same, regardless of the desktop environment.

There are some dire posts on the web saying installing Ubuntu on this machine is impossible. This is not true.

Installing on Macbook Pros are always a bit more involved than PC laptops, partly because Apple is very innovative and always uses the most up to date hardware, it doesn’t seem to care much about compatibility with other hardware or even with its own older products. However, it also does not share its plans or co-operate much, so by the time that the support has got down to the Linux distributions, Apple has completely changed its product line again for the next Christmas.

I found this laptop much easier actually than when my last Macbook Pro come out a couple of years ago, that was a bit of a disaster until support made it into the distributions. I have been using Linux since the late 1990s so I remember some really difficult installs.

Of course it is all relative, it is not as easy as building a desktop of extremely Linux compatible parts (e.g. Intel everything). In that kind of situation, you can put a kettle on, put in the Ubuntu CD and it is finished before you can make a cup of tea. Intel seems to make sure its hardware is supported in Linux before it is released.

If you want that kind of install then, yes, you are out of luck, get a different laptop, maybe one with Linux pre-installed.

Here we are talking more like two hours or so for the install - or longer if you write lots of crap into your blog :)

For this laptop, the main problem is not the install, it is that the desktop environments are not yet geared up for such a high resolution, more on this topic later.

USB Boot

The first hurdle is to make a bootable USB stick. This model of Macbook Pro does not have a DVD drive. Therefore, making a bootable USB stick or bootable USB drive is next easiest thing. I tried two different approaches.

The first and simplest approach is to use the usb-creator-gtk application on an existing Linux system. This is a graphical tool that takes an ISO image which you download from the web (e.g. from the Lubuntu or Ubuntu websites)

The Macbook Pro seemed to be a bit fussy and hard to please regarding which USB sticks it agreed to boot. Best to gather all the ones you own and find one it likes. Before I did my final install, I played about with various distributions on various sticks. I did not notice any particular pattern or reason why some were rejected.

The other approach is to make the bootable USB stick on Mac OS X. This later approach requires a bit more typing but the Mac seems less likely to reject a USB stick it has formatted itself. The Macbook Pro did not refuse to boot any USB sticks using this method, however I did not do a scientific test so it might have just been luck.

Among other things, I tried both Lubuntu 12.10 and the daily build of the forthcoming Lubuntu 13.04. They seemed pretty identical, but it is still a long way until 13.04 is released.

As explained somewhere on this page, the process started with converting the Lubuntu iso into a disk image. I opened a Terminal on OS X (by clicking on the Finder then Applications then Utilities then Terminal), and then performed conversion using the hdiutil command. In my case:

hdiutil convert -format UDRW -o converted-ubuntu.dmg lubuntu-12.10-desktop-amd64+mac.iso

Then I had to use the Disk Utility to re-partition the USB stick to use the horrid Mac OS Extended format. Once I had done that, I used the dd command to copy the disk image to the USB stick:

sudo dd if=ubuntu.img.dmg of=/dev/disk1 bs=1m

That takes quite some time. Check out the article on warp1337 for much fuller instructions.

A note on Mac OS X’s toy file system

I don’t know if they have fixed it now, but in my previous experience, I have found that Mac OS X and its Mac OS Extended format does not defragment itself very well, especially compared to ext4. So after you have run OS X for a long time, the partition will be so fragmented that disk utility will refuse to reduce the size of the OS X partition. In this case the only solution is to reformat the partition and reinstall OS X before you try to install Linux.

If you are buying a Mac with the aim of installing Linux, then repartition the drive as soon as you can. If you want to delay installing Linux for some reason then keep it as FAT or some other generic format (you can get Mac OS X applications that give ext support). If you make it a Mac OS X extended format partition then OS X might start storing files there and will then break or moan once you replace the partition with ext4 or whatever.

Resize Mac Partitions

Now we have to make some space for Linux.

In previous versions of Mac OS X, the utility called “Boot Camp Assistant” would do a lot of the work here, since setting up a partition for Windows would work nicely for Linux too. In OS X 10.8, it wants a Windows DVD to be put in the non-existent DVD drive before it does any work. However, one useful thing Boot Camp Assistant still does is recommend how small you can make the OS X partition, which in my case was 29 GB. So in Boot Camp Assistant, pull the slider around to see what is recommended.

So we need to shrink the Mac OS X partition it and add a new FAT partition, which we will set aside for Linux, this is then reformatted as part of the Linux install. Don’t worry about giving it a swap partition, you can live without it or use a swap file which works just as well.

[Now if like me, you have done it all before in older Macs, be aware. In previous versions, OS X took one partition. Now it actually takes three logical partitions for boot, root and recovery. However, this detail is hidden in the OS X disk utility which only shows one partition, and in the background, re-partitions the root partition and moves the recovery partition along too. I did not realise this and instead of doing the above with the FAT partition, just made free space and let the Ubuntu installer automatically install Linux in it. It kept the first two partitions and gave me Linux root and swap, deleting the recovery partition - frak! Do not make the same mistake, always make sure you have chosen manual partitioning in the installer program - and then double check. If you know how to make OS X put back the OS X recovery partition, please let me know by emailing zeth at the domain name of this site.]

Linux Install

So now all the boring stuff is done, shut down the computer.

If you have the Ethernet dongle, then it is best to plug it in now to an Ethernet connection.

Stick the USB stick in to the USB port and boot to the USB stick by hold down alt (also known as the Option key - but it says Alt on the key!) when you turn it on.

If all goes well, it offers you the choice of Windows! Take that and it will boot the Linux installer from the USB stick.

Choose manual partitioning and delete the FAT partition you made earlier. As said above, don’t worry about swap right now. You can install a swap file later or just forget it. You have 8GB of RAM so hopefully swap will rarely be needed, and a solid state disk does not appreciate it anyway.

rEFIt

Your Linux install finishes, it reboots and ... nothing happens, OS X boots as before without any choice of Linux!

Now you have to install a boot menu. I installed rEFIt as I have done in the past and it worked fine. Then I read that there is the newer rEFInd. I got rid of rEFIt and installed rEFInd and it didn’t seem to work and it was getting boring so I swapped back to rEFIt. Your mileage may vary.

Anyway, now you have three choices on boot: Mac OS X, Linux or some weird emergency prompt.

Choose Linux and Grub boots “in a galaxy far far away”. Yes it is very very small!

The desktop of the Lilliputs

So there has not been a major or minor Ubuntu release since this laptop came out, and unlike some other friendly manufacturers, Apple do not make sure their hardware works with Linux before release (or in fact ever).

However, for now, there is no getting around that this is a very high resolution screen. You have a Linux desktop, but unlike any you have seen before.

There are two ways to work around this high resolution. One is to reduce the resolution in the monitor settings to a lower level, i and it didn’t seem to work and it was getting boring so I swapped back to rEFIt. Your mileage may vary.

The second approach is to fiddle with the settings of the desktop environment to increase the font size and the size of the title bars and menus etc.

I went through all the Lubuntu Preferences menus changing the default font size from 11 to 20. So now I can at least read everything easily. Some of the icons and things are very undersized but I personally hate any visual evidence of the Operating System anyway. I prefer my whole screen to only show my running application, everything else goes away until I call for it. Most of the stock Lubuntu apps (which are mostly GNOME ones) handle this quite well. So far, the only non-bundled app I have got around to installing is Emacs which copes perfectly.

Hardware support

So one of the attractions of this 13-inch model is that it has an Intel graphics card. My old Macbook Pro one had an Nvidia card which needed some proprietary blob and used up the battery much faster than Mac OS X would. The idea was that it would fallback to another chip when on battery, but that feature was not supported when I first installed Linux to it and never got around to looking into it again.

I am not a hardcore gamer, so I always prefer an Intel graphics card over the fiddly proprietary ones. They have a long battery life and tend to just work.

I also prefer a Linux wifi chip but sadly this has some brand new Broadcom chip. So you have to install the wifi driver for it. This is obviously easier if you have the Ethernet dongle we talked about above, if not you will need to download it to a USB stick or something to get it onto the laptop.

Installing the wifi drivers is another few commands. It is explained some way down this page and in this page. Hopefully it will be packaged in the future distro releases.

To get the sound card to work correctly, I needed to open the ALSA config file:

/etc/modprobe.d/alsa-base.conf

And then I added the following line to the bottom of it:

options snd-hda-intel model=mbp101

Other things

That is it really. Only remaining jobs are to remap a key to be middle click and maybe reduce the sensitivity of the trackpad. These are issues of personal taste so I will leave them for now.

This post is a bit rough but I thought it was worth getting it online as soon as possible in case it helps someone.

]]>
Fri, 08 Mar 2013 00:00:00 +0000
http://www.zeth.net/2013/01/14/samsung_printers_on_ubuntu.html http://www.zeth.net/2013/01/14/samsung_printers_on_ubuntu.html <![CDATA[Samsung Printers on Ubuntu]]>

Samsung Printers on Ubuntu

After installing the Lubuntu flavour of Ubuntu on most of my machines, I then had to remember how to setup the printer. This is a ‘note to self’ post, hopefully it might be useful to other people.

I don’t print a lot. It it easy and cheap to order family photos online or print them at the local photo shop. But when I do want to print (e.g. boarding pass), I want it to work.

That is why I hate inkjet printers, they are so unreliable and fragile, and the cartridges run out very quickly. So a few years ago I bought a laserjet. They cost a little more but actually work.

I did not want a scanner attached to the top. Scanning is much easier with a separate scanner that you can manipulate into different positions.

I wanted something with only a black cartridge and to be as simple as possible. The extra buttons and features are just gimmicks that nobody really wants (and probably are hard to get going on Linux anyway). I didn’t really care about having wifi or ethernet on the printer since it was expensive back then and, as long as the computer that the usb printer it is plugged into is turned on, Linux computers share usb printers very easily.

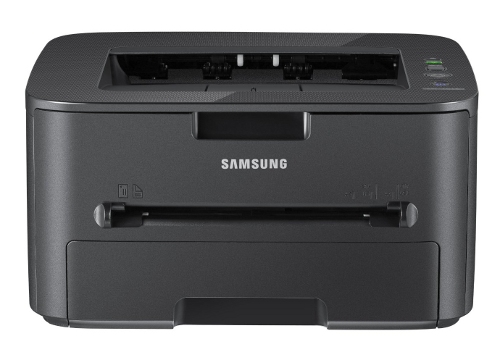

Image of the Samsung ML-1915

So I bought the Samsung ML-1915 which fitted the bill and love it. Everytime I see a friend or relative struggling with an inkjet I think fondly of my laserjet :) It once got completely covered in building dirt but cleaned up very well. It is has been a loyal piece of kit.

The world moves on and it has been replaced by more modern and cheaper printers like the Samsung ML-2165. It does not look quite so cool in white but it is half of the price so who cares.

Image of the Samsung ML-2165

Anyway my printer, like a lot of the Samsung printers, uses the Samsung Unified Linux Driver which for unknown reasons does not seem to be in Ubuntu by default, but it is pretty easy to install it.

Surprisingly enough, the Linux driver did come on a CD that came with the printer but it is easier to use the third party repository maintained at the bchemnet.com website.

Firstly you need to edit the sources list to add a repository, so open the file in your favourite editor:

sudo nano /etc/apt/sources.list

Now add the following line:

deb http://www.bchemnet.com/suldr/ debian extra

Then we need to add the key for that repository:

wget -O - http://www.bchemnet.com/suldr/suldr.gpg | sudo apt-key add -

Then we need to update the list of packages available:

sudo apt-get update

Now we can finally install the driver:

sudo apt-get install samsungmfp-driver

It would be much easier if that package was in the standard repositories but there you go. Now you can just add the printer using the normal graphical tool in your system.

In Ubuntu, this is under “System Settings” then “Printing”. In Lubuntu, this is under “System Tools” then “Printers”. Or you can just put system-config-printer into the terminal.

]]>
Mon, 14 Jan 2013 00:00:00 +0000
http://www.zeth.net/2013/01/02/netbooks_in_a_tablet_world.html http://www.zeth.net/2013/01/02/netbooks_in_a_tablet_world.html <![CDATA[Netbooks in a tablet world]]>

Netbooks in a tablet world

The Guardian is ringing the death knell on the netbook. I would tell the story a little differently, so I will.

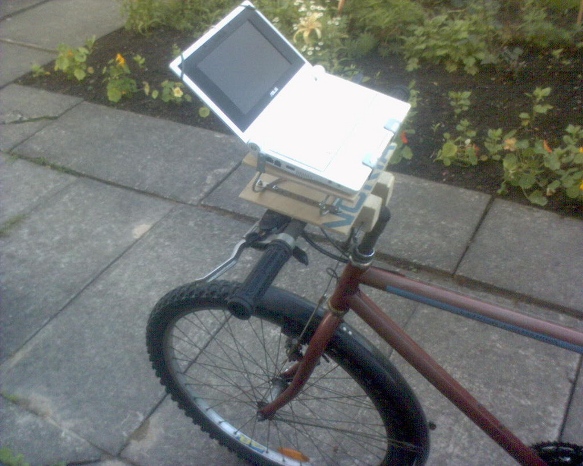

Image of a netbook on bike handlebars

In the beginning was the $100 laptop dream

Before 2005, there were not many small factor laptops. I had the smallest Thinkpad, which was merely a smaller version of any other Thinkpad, which had a high end processor and lots of RAM, and it cost quite a bit back then. $1000-2000 dollars was the typical price for a laptop, and due to economies of scale, the then standard 15 inch screen laptop was always the cheapest model, smaller and larger sizes were a bit more expensive.

In 2005, the OLPC (One Laptop Per Child) X1 was announced - a $100 laptop aimed at children, with a special low power processor from AMD, running a version of Fedora Linux, with suitable proportions for a children. The X1 included a video camera, touch screen, sd card slot and wifi; features that were considered high end in 2005.

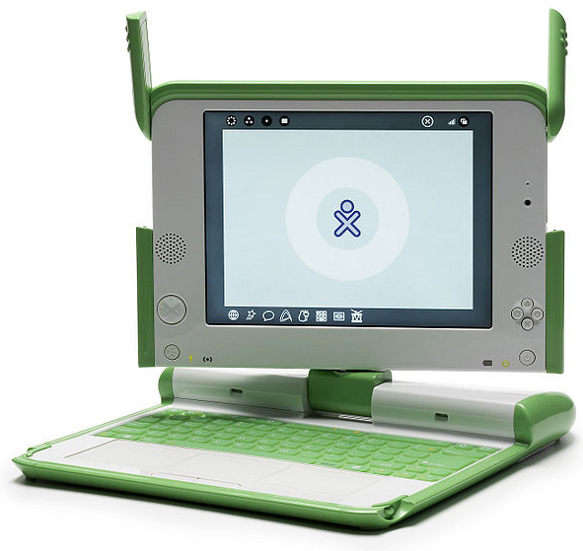

Image the XO laptop for children.

The dominant computer companies had a collective nervous breakdown at the mere concept of it. While everyone appreciated the new and noble idea of OLPC, the existing market leaders were extremely hostile to it. Microsoft lobbied departments of education around the world, telling them that if they bought their children non-Microsoft devices then their future careers would be ruined forever, etc, etc.

Meanwhile Intel did something a little more positive in that it dusted off its shoes and worked with hardware manufacturers to get Intel powered devices to the market. The first was ASUS with its educational “Classmate PC”, and the consumer oriented counterpart the Eee PC.

Until this point, the trend of processor manufacturing was towards increasingly more powerful (and hungrier) processors. Intel didn’t even have a suitably efficient chip so it under clocked its lowest laptop processor from 900 MHz to 630 MHz. Later it would get its act together with its Atom chip, but a little late as ARM based chips had already gotten most of the market.

Nobody cared about the Classmate PC, but despite the stupid name, the Eee PC was a big hit. Despite the bizarre 1980s style border around the screen, the early 701 series models were great, they had solid state drives and cost around £200. They were also light enough to use while holding them up, unlike the bulky laptops a lot of people still had back then.

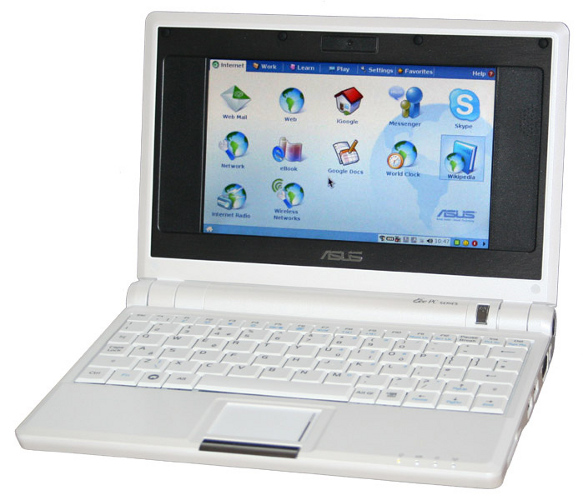

Image of the ASUS EEE PC 701

It might not sound it like it now, but in 2007 it seemed really cool that with a netbook, you did not bother with a specialised multi-pocket laptop bag, it was not a chore to throw it into your backpack and keep it with you at all times. If the worst came to the worst and it was lost or stolen, £200 is rather less of a shock than £1000-2000.

Meanwhile, the OLPC project has had some solid achievements, and 2.5 million kids using the XO laptops, but the initial excitement and the wide coalition of support faded out, and it has not yet managed to overcome the political and monopolistic obstacles to a global roll out. It also never got into the required production volumes to be exactly $100 per unit. If you are a department of education, especially a developing world country, $100 per child is already a lot, a $200 dollar laptop for each child proved to be out of the question. [They always seem to have enough money for military jets and nuclear programmes though!].

This is is a shame because the Sugar interface is a fantastic learning tool for children. Maybe its time is still to come. They are trying to pull everyone back together for the launch of the new iteration, the XO-4, sometime this year.

Netbooks and dodgy Linux pre-installs

A lot of other manufacturers brought out ‘netbooks’, we were given an Acer Aspire One by a relative, and some of them, including the Eee PC, came with Linux. What I have never understood about netbooks, is that they always came with an unknown and slightly crap form of Linux, with almost no decent applications on them.

In the wider desktop and laptop markets, Linux users tend to install Linux distributions as an after-market upgrade, sidelining or wiping out completely the redundant copy of Windows install that came pre-installed with the computer. It is an extremely competitive market; at the time of writing this article, the DistroWatch website lists 314 currently available Linux distributions.

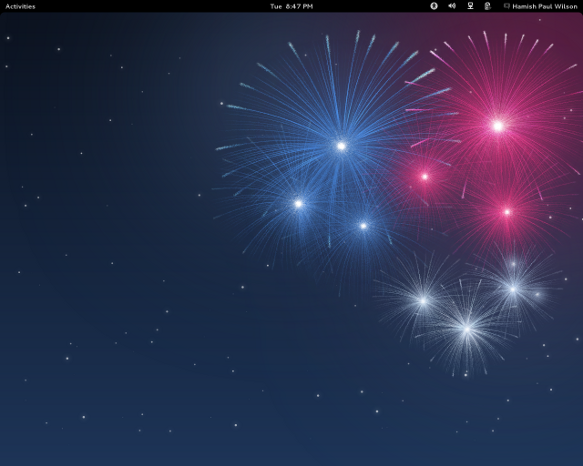

Image of the Fedora 17 desktop

A lot of these are hobbyist or specialist efforts, but out of this whirlwind come a handful of really big ones, that the majority of Linux users actually have installed. Ignoring distributions aimed at technically proficient users such as Gentoo, Arch, and Slackware, the big ones include Ubuntu, Fedora, SuSE, Debian, Mandriva and Mint.

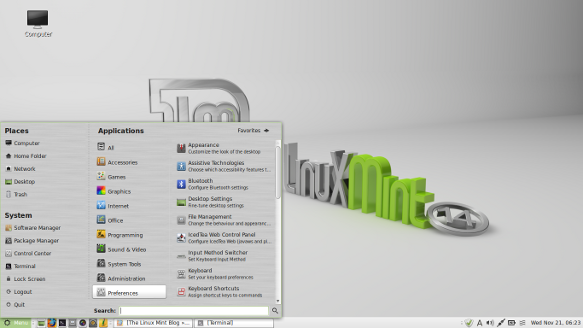

Image of the Linux Mint Desktop

These are all free, so why didn’t the netbook manufactures install these? They have a proven track record of usability and popularity and existing teams working on improving them. If Ubuntu alone has 20 million users already, then why not sell what these people want? The highly innovative world of Linux, with things constantly forking and splitting, probably does not make it easy for manufacturers, but the big brands like Fedora and Ubuntu are pretty stable participants. Fedora’s backer Redhat had its famous IPO in 1999 and is a S&P 500 company.

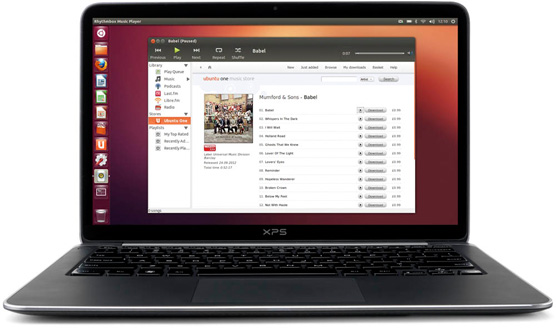

Image of the Ubuntu on the Dell XPS

I have no idea why laptop manufacturers and the big Linux distributions have not done a better job at working together. Of course, there is obviously a massive obstacle in the entrenched Windows monopoly and the marketing budget that Windows gets from its monopoly profits.

Small companies who pre-install Linux on computers as a boutique service for time-poor Linux users are not readily assisted by the manufacturers of the laptops. Dell had a half-effort at selling Ubuntu laptops, but not in the UK, maybe that will increase. Canonical now seems to be having some new efforts on working with manufacturers with regard to tablets so we will see how that pans out.

In the mean time, what people commonly call “Real Linux” distributions have been completely overtaken by the rise of Android, as we will come to shortly.

2007-2010 - The short reign of the netbook

Despite some promising signs, the netbook boom ended pretty quickly. I agree with the Guardian article on that to a certain extent.

As the Guardian points out, the first major blow was specification creep. The computer hardware industry’s habits would not die easily, and they soon watered down the concept. Instead of a small fast portable computer with a web browser, simple fast applications, no moving parts, and costing £200, they soon reverted to type: to make Windows and its accompanying bloatware perform decently required better hardware, regular hard drives replaced solid state storage, whirring fans came back, battery run times collapsed, and they soon crept back up to £300-400.

Image of Clippy, the Microsoft Office Assistant

Going further than the Guardian article, I would add here that the second and more important blow was a lack of software innovation. Microsoft worked hard to make sure Windows got the lion’s share of pre-installs, but it did not attempt to do anything innovative in the netbook space. It provided either the dated Windows XP (launched in 2001), or a crippled version of its later systems. It did not attempt to create software relevant to a low powered portable device. So the majority of netbooks were sold with software not particularly designed for it.

The third and fatal blow was the launch of the iPad in 2010, and then the arrival of even better Android tablets. A lot of computer users are passive information consumers, and short form and asynchronous interactions of the social networking boom are not inhibited by the lack of a physical keyboard. Unlike netbooks, tablets managed to free themselves from the Windows baggage and have specially tailed operating systems.

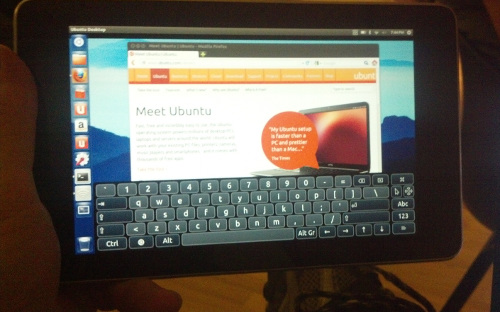

Image of the Nexus 7

Tablets and phones fatally bisect the netbook market; occasional and light users can just use tablets and phones, professionals can afford the $1000 small factor laptops, ‘Ultrabooks™’ as Intel calls them.

However, I think the fact that netbooks were sold with unsuitable Windows operating systems was the biggest factor. I think with the right tailored software, netbooks can be useful tools.

The rise of Android and Chrome

While the “Real Linux” distributions were mostly ignored by the manufacturers. In an act of genius that we almost have come to expect from Google as a matter of routine, it got the concept of commodity computing and used it as a way to increase usage of its own services. Android and Chrome are technically Linux, but all the common applications are replaced by Google’s own offerings, and whatever crap the manufacturer adds on.

Long time Linux users were initially not impressed they could not easily use their existing applications and the fact that it launched with a Java only development environment alienated a lot of C and Python developers on the Linux platform who felt lobotomised by it. Over the last five years, the Linux community has mostly come to terms with Android.

Parody image of Android logo eating the Apple logo

Android is the most successful distribution in the history of open source software. Don’t get me wrong, I like it a lot, I have Android devices and I love them in their own way, but it is not want I really want for my primary computing device. This would take another whole article to explain but Android is Linux but with all the joie de vivre, the joy and enthusiasm, sucked out of it. Also, I still it is relatively early days in open source software, the big game changing Linux device has not been invented yet.

Image of Tux, the Linux mascot inside the Android logo.

Here is where I have to really depart from the Guardian article, they claim that no netbooks are being released. Well I think that must be a pretty narrow definition of a netbook.

Chromebooks, netbooks with Google stuff preinstalled rather than Microsoft’s, are the second incarnation of netbooks. Because Chromebooks use a special BIOS and bootloader, it is currently a bit of a faff installing your own Linux distribution, but it is possible and hopefully it will get easier over time if the distros find some easier way of installing on Chromebooks.

So from the perspective of a Linux user, despite the initial faff, Ubuntu on an Acer Chromebook is little different than running Ubuntu on an Acer Aspire. For me Chromebooks are still netbooks.

Netbooks will not die

For me the netbook format is still relevant and will not die (yet at least).

Tablets are like small babies, you have to hold them all the time, I haven’t mastered the art of propping the iPad up. Even bespoke stands are never around the moment you want to put the tablet down. Giving a presentation from a tablet or a phone not only requires being very organised - it is hard to make last minute changes from a tablet, it is also quite expensive to get a VGA connector for them (and you have to not lose it).

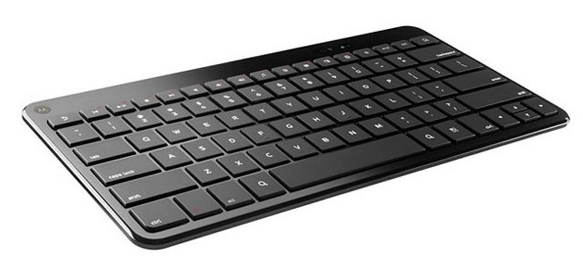

Image of a bluetooth keyboard

I know it is not trendy, but sometimes you just want to use physical keys. I do have a very nice bluetooth keyboard for my Android powered Samsung S3, but Emacs does not work very well on it, it is not ported very well and Android’s own features try to take over. Although I will hopefully get over some of these problems over time.

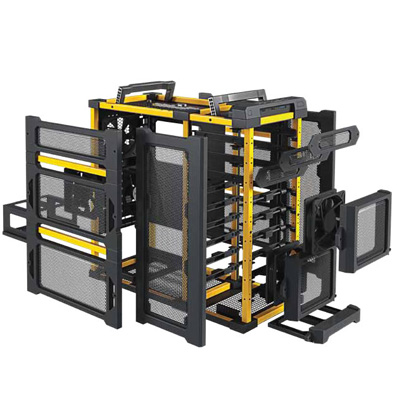

Image of an exploaded desktop case

At the moment I am very lucky to have a high end laptop due to the nature of my job. However in general, I am a desktop type of guy. I like buying the components and screwing them together. I like being able to stick more RAM in later when it becomes cheaper. I like being able to scavenge for spare parts and turning three broken machines into two working ones. I like two full sized monitors.

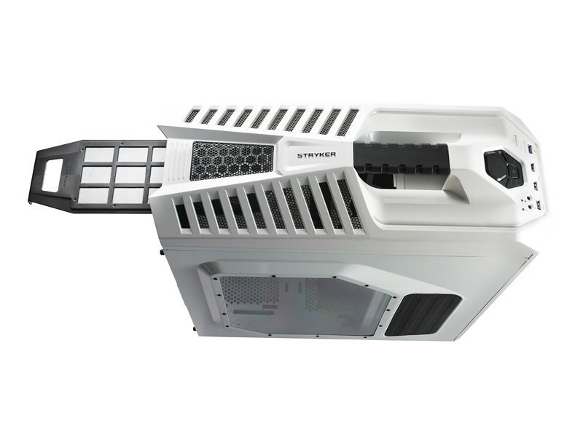

Image of an desktop case with cd tray showing

I hate it when expensive laptops break, in general these are not fixable at home and have to be sent away, which can be as expensive as a netbook, but is also inconvenient being without it for several weeks.

For me a netbook is a very nice complement to the desktop/home media server type setup. It works enough offline, and with a good connection I can use the full power of my home desktop remotely. If it breaks it is less of a problem, being £200 to replace.

Chromebooks

Lets have a look at some Chromebooks.

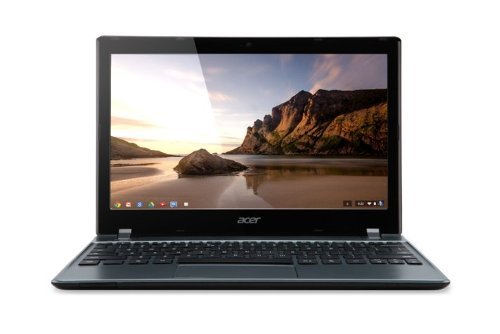

Image of the Acer C7

The cheapest current Chromebook seems to be the Acer C7 Chromebook which at $200 and £200 is a pretty unfair currency conversion, it certainly one to buy while in the US, or perhaps have posted from a US seller if you are not in a hurry. I like the fact it has VGA (for projectors) and HDMI (for TVs) and still has an ethernet port (for plugging into a wired network) which is rare this days. It is not lacking in power with an over-generous 2GB of RAM. It has a massive 320GB old fashioned hard drive, which you will either love (lots of storage and less fear of disk corruption) or hate (it is a moving part which can make noise and potentially fail). I personally would prefer a small solid state drive.

If you get through the Chromebook bootloader hassle and successfully get Linux installed, since it has an Intel processor and graphics, it should work pretty well. Intel graphics is a plus since Intel stuff normally works automatically without the need for a proprietary driver (but then I am not a gamer, Linux gamer types always seem to get Nvidia graphics). It does not say what the wifi chip is, if it is Intel too then all the better.

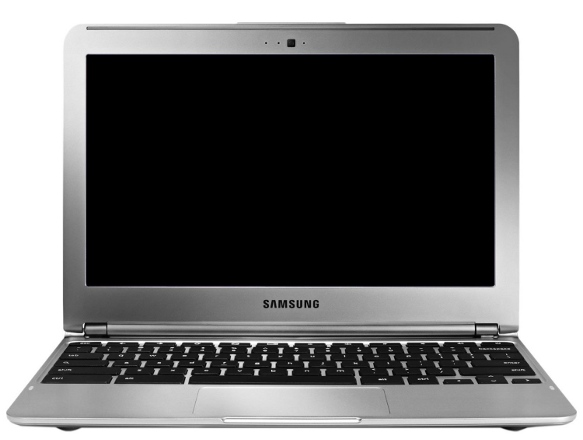

Image of the Samsung Chromebook

More expensive, but at least with a sane UK price, at $325 or £230 is the Samsung Chromebook. It also has 2GB of RAM but it is slim and fanless with a 16GB solid state drive and bluetooth.

So in many ways it is a better machine than the Acer but it is ARM, which is the trendy thing but there is no support for hardware accelerated graphics at the moment for Linux on this ARM chip and some proprietary software might not work either if it does not have an ARM binary, if you rely on Skype or Flash or something, you might want to check if these work on ARM. However, Michael Larabel of Phoronix has reported good things about it.

Both seem nice but neither are the perfect netbook.

Less is more

Fundamentally, I think these are still too high expensive and in that sense, netbooks have not really begun yet.

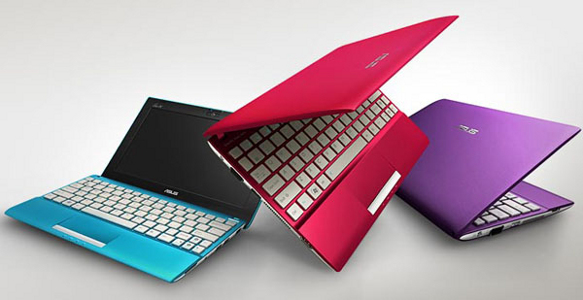

Image of a coloured Asus netbooks

Of course when compiling software or doing video editing or whatever, one still wants the best computer possible. However, If I was designing a netbook, I would accept that in 2013, you are likely to have many computing devices - phones, tablets, smart TVs, desktops and games consoles and so on. I would explicitly make it good at being a cheap portable laptop you sling in your backpack.

The ‘Zethbook’ would be a small factor laptop with modest (32GB or 64GB) solid state drive and preferably no fans or other moving parts, with no more than 1.0 GHz processor, and no more than 1GB of RAM, preferably with Intel graphics or some other Linux supported chipset.

The Zethbook could then be incrementally improved in other ways that do not involve unnecessary bloating up the cost and power usage, as battery technology improves but the processor stays the same, why not 100 hours of usage? Why not 1000 hours? Make it sandproof for the beach, make it waterproof so you spill a whole glass of soda over it or use it in the shower. Make the keyboard better, improve the screen resolution, make it more user modifiable. Improve the shock resistance so it can cope with being accidentally dropped open with the screen hitting the floor first, let it be bike proof and fall off the handlebars at 20 mph and hit the road without damage. Let it fall out of a car window at 60 mph.

Image of a netbook at the beach

It is great that computers get more powerful every year, but I think it is a bit too one-sided. The international Space Station runs on the 386 processor which was brought out in 1985. The Linux kernel and GNU GCC compiler are now starting to remove support for it now, but the 386 is still (in theory) usable with Linux for a while longer. Going forward in time, with an efficient choice of operating system, 95% of things can be done on a Pentium 4 computer from 2000. It is just lazy programming that requires bloated systems all the time.

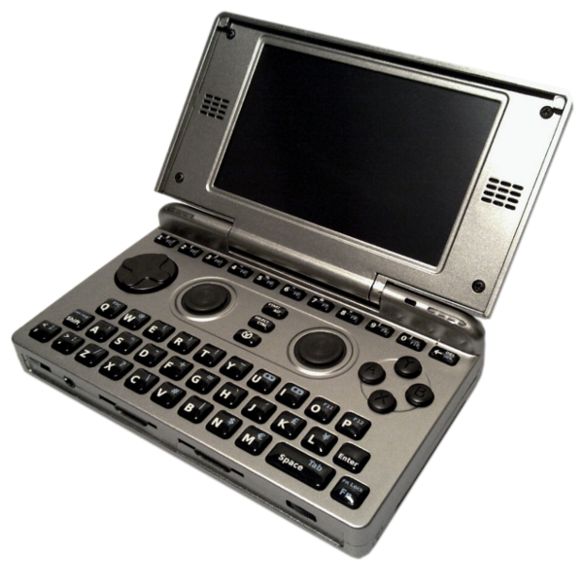

Image of the OpenPandora

Sadly you won’t see the Zethbook any time soon. Boards aside, the OpenPandora (warning: linked web page has sound) is the nicest complete Linux device I have seen so far, it is a handheld game console costing over $500. It is not that easy to get the price down without being made by the biggest manufacturers like Asus, Acer or Samsung etc.

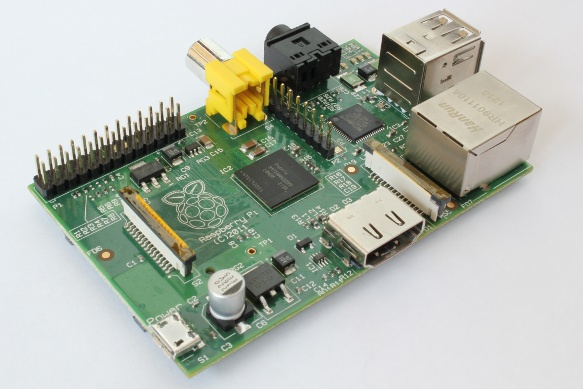

Image of the Raspberry Pi

The Raspberry Pi Model B is perfectly usable at 512 MB and 700 Mhz (twice as powerful as the original version of the OLPC XO). The Raspberry Pi Model B is $35. Granted it does not have a keyboard (cheap) or a screen (expensive) or wifi, but we can still imagine a portable device for $100, which of course, is the OLPC dream that started the netbook story. I am quite interested in those who are putting the Raspberry Pi in home made mobile forms and may follow that up in a future post.

Let me know your thoughts on netbooks. Do you love or hate the netbook. Will you miss its passing if it does die out? Do you like or hate the idea of Chromebooks?

]]>
Wed, 02 Jan 2013 00:00:00 +0000
http://www.zeth.net/2012/12/30/zoneminder_on_ubuntu.html http://www.zeth.net/2012/12/30/zoneminder_on_ubuntu.html <![CDATA[Zoneminder on Ubuntu]]>

Zoneminder on Ubuntu

Ever thought about building your own CCTV system? All you need is free and open source software Zoneminder, a free Linux distribution such as Ubuntu, Lubuntu or Debian, an old PC and a camera.

What is Zoneminder?

Zoneminder is an open source application used for CCTV and other security and surveillance applications. You can use it to monitor your home or work property or to monitor your pets while you are out, whatever you can imagine really (look at the screenshots on the Zoneminder homepage for more ideas).

The implementation is basically a Perl/PHP web app using Apache and MySQL (LAMP as we call it in the trade). If you have ever set up a website or blog or something then you will understand it instantly. It is a nice concept as using shared nothing web application and system administration principles it can scale up indefinitely to very large commercial uses.

If you are the kind of person who already has a home wifi or wired network and a home server or desktop on all the time, then Zoneminder will fit in great, as the only extra electricity you will be using will be the camera (or cameras) themselves.

Zoneminder is really flexible and configurable, which is fantastic but also means that you do have to configure it for your own needs. If you have quite a minimalist IT setup at home with no machines running most of the time (e.g. just a iPad in your Thames-side studio apartment), then using Zoneminder at home might be overkill, as you can probably buy a pre-made embedded home CCTV system that runs off a single plug and does not require configuration.

Zoneminder stores the recorded video as single frame images in a simple data layout on your filesystem and the web application allows you to configure it and view the cameras in real time and view recorded footage. The metadata is stored in the MySQL database.

What kind of camera do I need?

It seems you can use anything. If you have a simple USB webcam lying around at home, that is all you need to get started. If then you like Zoneminder you can then get a posher camera later if you want.

There different types of cameras depending on how serious you are. The more serious people put a card in their computer (such as the Hauppauge Impact VCB/PCI Composite AV Input card ) and use real high definition video cameras.

I personally use a ‘netcam’ (I have the model called TRENDnet SecurView Wireless N Internet Camera if you want to be precise) which is basically a webcam with a built in wireless card (and or ethernet socket). So you can put the camera anywhere you can power it and it will log onto your wireless network like any other device. You don’t have to run AV cables back to your computer.

[The same advice that I always give concerning routers and other network devices applies here: if you buy such a netcam, check its website for any firmware updates, especially security updates, before you add the device to your network. These things are little network connected computers after all, containing a proprietary operating system. This system may have been written by a guy with a masters in network security from MIT, or it could have been written by a subcontractor earning £1 per hour in who knows where. The problem with all proprietary software is that there is no public peer review (unlike with open source software). So check the vendor for security updates.]

If a burglar manages to get in and picks up the netcam, there are no wires to follow back and so no clue as to where the images go. One can also use backup software or write a few bash scripts to copy images to a remote server or the cloud if you are in a high crime area. If you have a really good internet connection at both ends, you can put netcams in your relatives’ houses and allow your Zoneminder server to grab the images off.

What kind of server do I need?

By ‘server’ in the article, I just mean the computer that will have Zoneminder installed, as opposed to any other computers, tablets, phones or even TVs you might use to operate the system on a day to day basis.

I suppose (in theory) you could use any operating system that can run Perl, Apache and Mysql. However, the assumption from here is that you will be using a Linux distribution, because Windows and OS X are, to put it bluntly, completely crap in this server role and a massive hassle to work with. If you have a Linux Desktop already at home, then that will probably work fine.

In my experience, the server does not need to particularly powerful for a simple home setup. I am using a low-powered PC from 2006 which runs Zoneminder and lots of other apps quite nicely.

You don’t have to have a graphical system, you can use something like Ubuntu Server if you want. However, you will need some computer or phone with a web browser to control Zoneminder and view the saved images/video, this does not have to be a Linux computer (toy operating systems work fine as clients).

Source vs Packages

A couple of years ago I installed Zoneminder on Ubuntu 11.04 by downloading the source. Now over Christmas I had a spare 20 mins and re-installed the OS. I like backing up and reinstalling occasionally as it gives a nice clean system. This time I went for Ubuntu 12.10 in the Lubuntu flavour (I will talk about that in the future). Then I had to put all the data and programs back on.

Last time I installed Zoneminder from source, this time I thought I would try the Ubuntu packages. This guide should work for any Ubuntu or Debian type system, but your mileage may vary.

Lets get started.

Firstly, we need to install the zoneminder package, you can do this in the graphical “software centre” or you can just open a terminal and use this command:

sudo apt-get install zoneminder

On a fresh system without Mysql, it will ask you to set a Mysql root password. Next it configures the nullmailer mail relay, I just accepted the default answers. Then it stops returns control of the shell.

Apache settings

Now we need to let Apache know what is going on. If you are already using Apache to show websites on this system, you can integrate Zoneminder in a way that does not clash with your other sites.

However, on a fresh system, you can do this:

sudo ln -s /etc/zm/apache.conf /etc/apache2/conf.d/zoneminder.conf
sudo /etc/init.d/apache2 reload

Now when you go in your web browser to http://localhost/zm/ you can now see the console.

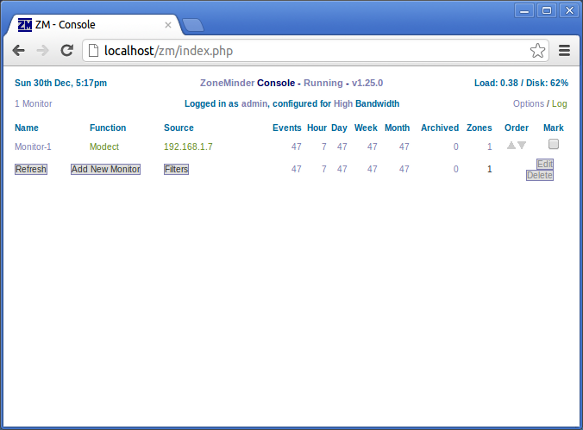

Image of the Zoneminder console in a web browser

If you have installed Zoneminder to a non-graphical server distribution, then obviously use the IP address or domain name instead of localhost when you access Zoneminder from your external computer or phone or whatever.

Camera Setup

When you click on Add New Monitor, you get a web form that looks like this:

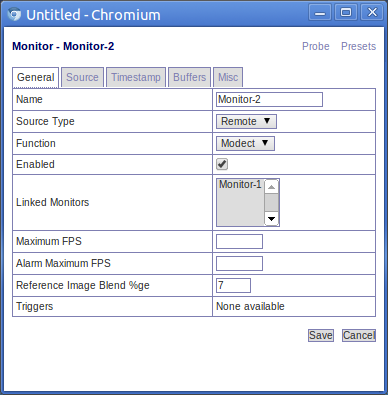

Image of the Add New Monitor web form in a web browser.

The most important field here is “source type”, the setting chosen affects the options available in the source tab (see below). Since I am using a netcam, I set it to remote.

Another important field is ‘Function’. Modect is short for ‘motion detect’, it records when there is motion, other options include constantly recording and just monitoring without recording.

Now we come onto the source tab, as shown below:

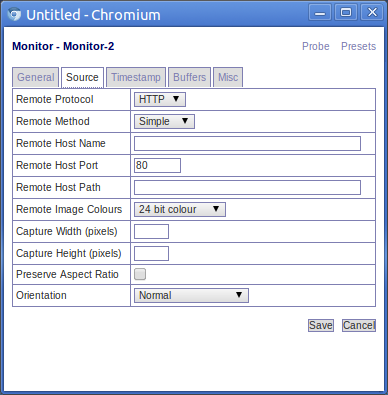

Image of the define source form in a web browser.

This window allows you to define the hostname of your camera. So for a netcam we give it the host name of the camera, which in a home setup will probably be a private ip address (e.g. 192.168.x.x). Look up your camera on the Supported hardware section of the Zoneminder wiki to find what settings you need to add here.

Log driven configuration

You can read the Zoneminder ‘system log’ by clicking on a link unsurprisingly called ‘log’ (as shown in the main console screenshot above). This gives as a log viewer, as shown below:

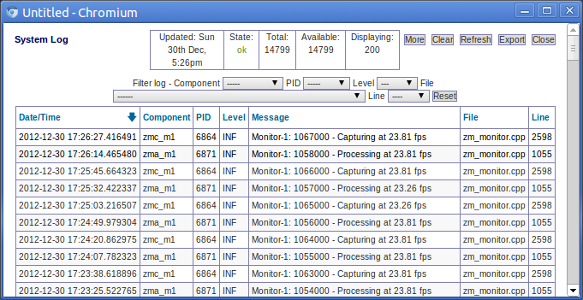

Image of the log viewer in a web browser.

The way I configure Zoneminder is by reading the activity log and keep changing configuration until it stops moaning.

So I started with this error:

Can't open memory map file /dev/shm/zm.mmap.1, probably not enough space free: Permission denied

This due to the default settings of Ubuntu (or Lubuntu in my case). There is a kernel setting called shmmax which determines the maximum size of a shared memory segment i.e. the total amount of RAM that can be used when Zoneminder is grabbing images from the video driver.

[You may vaguely remember doing this before because some ‘enterprise’ (i.e. bloated) databases and other business software often requires this too.]

So on my fresh install, shmmax was set to 32MB by default and it needed to be more than 96MB, so I increased it to 128MB to be sure.

How much you need depends on how posh your camera is. The higher resolution the camera, the more RAM Zoneminder will need to use.

A quick hack way is to just override the number in /proc, obviously this only works on the live system, when you reboot the setting is gone. However, it is a quick way to play about with the setting:

sudo su
echo 536870912 >/proc/sys/kernel/shmmax
exit

You can work the setting by trial and error but you can also just to look in the Zonemaster wiki, or to google it, as it is likely that someone else is already using Zonemaster with the same model of camera you have.

I restarted zonemaster:

sudo /etc/init.d/zonemaster restart

And it solved the problem. So because I then knew it worked, (as advised by Zonemaster wiki), I made a config file to do this on boot:

sudo su
echo kernel.shmmax = 536870912 >/etc/sysctl.d/60-kernel-shm.conf
sysctl -p
exit

Next up in the log was the error:

waiting for capture daemon

This is fixed by adding the web server user to the video group:

sudo adduser www-data video

(Why isn’t this sorted out by the .deb package? And why is it not given its own user?)

Just keep attacking the log errors until it is all happy really.

Configuring Image Location

By default the images are bunged into: /usr/share/zoneminder/events which is a symbolic link to /var/cache/zoneminder/events/1/

In theory, to change this you need to change the setting ZM_DIR_EVENTS which is the first setting under ‘Options’ then ‘Paths’. Use an absolute path and make sure the destination has the correct permissions.

In reality, I never had much luck changing this. When it tries to read the events back, it seems to be somehow hardcoded to the old location which is then appends with this location. If anyone has the answer to this let me know.

So instead I have had more luck just ignoring this configuration option and instead myself replacing the symbolic link /usr/share/zoneminder/events with my own:

sudo rm /usr/share/zoneminder/events
ln -s my_better_location /usr/share/zoneminder/events

By default there is no lockdown on the web interface, so if the machine is web accessible, you will want to change that (options > OPT_USE_AUTH). When you first turn on authentication, the username is admin and password is admin. You will probably want to change that too! (Options > Users - only appears when authentication is turned on).

There are lots of other things you can configure like the sensitivity of the motion detection and which regions of the image to watch and which to ignore it etc. However, we have covered everything specific to using Zoneminder on an Ubuntu/Debian system using the .deb packages. The Zoneminder wiki is very useful and comprehensive so dig around there to find out more.

Zoneminder in action

Now if you have read this far you deserve to have some silly pictures.

Having a CCTV camera at the front of your house educates you a lot about what happens in your local community. I have learned all sorts of things from watching back footage at random. Most of the cool snaps I probably cannot post online for legal and taste reasons.

The first revelation is that a large amount of people look through your windows. Here is a fairly tame and blurry one.

Image of someone looking into the camera.

I have had people come right up to the camera and look through the windows. One person even wrote down details in a pad.

Where does the box load of paper spam come from? Well Zoneminder will tell you. Here is a guy promoting a pizza company:

Image of someone giving me a pizza advert.

Here is a free ‘newspaper’ full of ads:

Image of someone giving me free newspaper.

Fortunately, we still have real postmen. But they seem to be far more informally dressed than Postman Pat:

Image of someone giving me free newspaper.

I think he was a special temp over Christmas. Sadly they all seem to have these granny trolleys now instead of the cool Pashley bicycles they used to have.

Fortunately, the dustmen come and take all this rubbish away, even in heavy rain:

Image of bin men and a dust cart.

Over to you

So setting up Zoneminder takes a little fiddling but it is good fun and reassuring to have the ability to look back in time at what was happening in front of your house in the past. If you have a go or have tried Zoneminder before, please let everyone know how you got on and how I could improve this guide. Bonus points for silly pictures.

]]>
Sun, 30 Dec 2012 00:00:00 +0000
http://www.zeth.net/2012/12/11/cant_stop_the_signal.html http://www.zeth.net/2012/12/11/cant_stop_the_signal.html <![CDATA[You can't stop the signal]]>

You can’t stop the signal

When I started this site in 2005, I said that my blog was:

“about taking control of your own technology, it looks at our experiences of computing; especially computing using GNU/Linux, often using the command line and other textual means, but also other issues such as ethics, best practices and whatever is cool now.”

In 2007, in answer to a question, I provided this further description:

“The broader meaning is someone who is willing to take the extra time and effort to think through and take control of all the technology that is entering into our daily lives; to make sure that our freedoms, hard-fought for on the battle field, protest rally and ballot box, are not quietly surrendered in the digital age, but instead freedom must be at the very foundation of technology itself.”

About a year ago (December 2011), I decided to take some time off writing here. I thought that if I stopped writing blog posts and stopped writing mailing list posts and stopped Tweeting it would give me more time and energy to make progress in other areas of my life.

I was wrong.

By not engaging with the interests and interested communities that got me where I am philosophically and technically, my passion started to fade and I lost those key insights that only come from interacting with others in the field.

So I have decided to try to restart writing. All previous entries from 2005 to 2011 are now archived, and I have a clean new chapter to begin.

Bear with me as I build up confidence again as a writer. The biggest difficulty I have is writing to a silent audience. It is difficult to know which topics to address if I do not know the audience’s interests. So please do give me your comments and ideas. There is a comment box available below and my twitter name is zeth0.

]]>
Tue, 11 Dec 2012 00:00:00 +0000
